Liquid Silicone Injection Molding: Revolutionizing Silicone Manufacturing

Liquid Silicone Injection Molding (LSIM) is a highly versatile manufacturing process widely used in producing silicone parts with precision and efficiency. This method involves injecting liquid silicone rubber into molds under controlled conditions, allowing the creation of complex shapes with excellent material properties.

What is Liquid Silicone Injection Molding?

Liquid Silicone Injection Molding is a process where liquid silicone rubber (LSR) is injected into a mold cavity at high pressure. Unlike traditional rubber molding, LSIM uses a liquid form of silicone, which allows for more intricate designs and faster curing times. The silicone cures within the mold, resulting in a durable, flexible, and chemically stable finished product.

Advantages of Using Liquid Silicone Injection Molding

Liquid silicone injection molding offers several advantages over other molding techniques. These include:

• High Precision: The liquid nature of silicone enables fine detail replication.


• Fast Production Cycle: Faster curing times lead to higher output rates.


• Material Efficiency: Minimal waste due to accurate dosing.


• Consistent Quality: Automated processes ensure uniformity.


• Wide Temperature Resistance: Finished parts can withstand extreme temperatures.



Materials Used in Silicone Injection Molding

The primary material used is liquid silicone rubber (LSR), a two-component system that cures when mixed and injected into the mold. LSR is known for:

• Biocompatibility: Safe for medical and food applications.


• Chemical Resistance: Withstands oils, solvents, and other chemicals.


• Flexibility: Maintains elasticity across temperature variations.

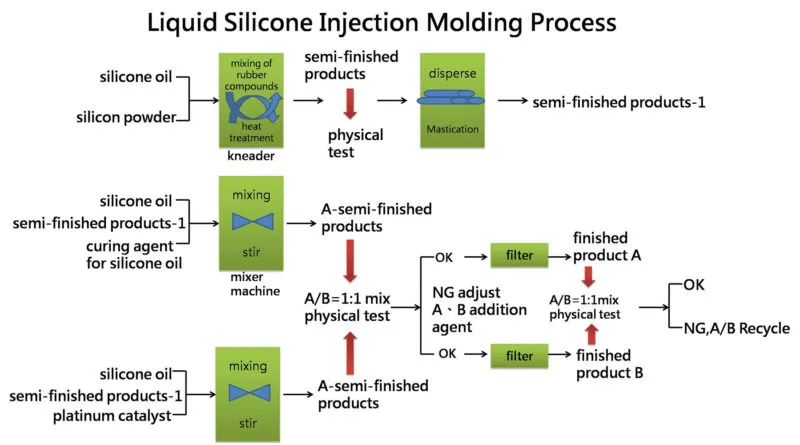

The Injection Molding Process Explained

The liquid silicone injection molding process typically involves these steps:

1. Material Preparation: Two components of liquid silicone are prepared and mixed.


2. Injection: The mixed silicone is injected into a heated mold cavity under high pressure.


3. Curing: Heat activates the curing process, solidifying the silicone.


4. Ejection: The mold opens, and the finished part is ejected.



Types of Molds in Silicone Injection Molding

Molds play a crucial role in determining the quality and complexity of the final product. Common mold types include:

• Single-Cavity Molds: Used for simple, low-volume production.


• Multi-Cavity Molds: Allow simultaneous molding of multiple parts.


• Overmolds: Combine silicone with other materials for hybrid parts.



Applications of Liquid Silicone Injection Molding

Liquid silicone injection molding is widely adopted across various industries, such as:

• Medical Devices: Catheters, seals, and flexible tubing.


• Automotive: Gaskets, seals, and vibration dampers.


• Consumer Electronics: Keypads, buttons, and protective covers.


• Food Industry: Baking molds, seals, and kitchen utensils.



Factors Affecting the Quality of Silicone Molded Parts

Several factors influence the final product quality in LSIM:

• Mold Design: Precision in mold machining ensures accuracy.


• Injection Parameters: Temperature, pressure, and injection speed.


• Material Quality: Consistency of the liquid silicone mix.


• Post-Processing: Trimming and finishing processes.



Differences Between Liquid Silicone Injection Molding and Other Methods

Compared to compression molding or transfer molding, liquid silicone injection molding offers:

• Greater Design Flexibility: Allows complex geometries.


• Reduced Cycle Times: Improves production efficiency.


• Cleaner Process: Minimal waste and reduced contamination risk.



Challenges in Liquid Silicone Injection Molding

Despite its advantages, LSIM has challenges such as:

• High Initial Tooling Cost: Precision molds can be expensive.


• Process Complexity: Requires skilled operators and precise control.


• Material Sensitivity: Liquid silicone requires careful handling.



Innovations in Silicone Injection Molding Technology

Recent advancements have improved LSIM capabilities:

• Automated Injection Systems: Enhanced precision and speed.


• Multi-Material Molding: Combining silicone with plastics or metals.


• Improved Mold Materials: Increased durability and thermal conductivity.



Environmental Impact and Sustainability of Silicone Injection Molding

Silicone is a durable, reusable material, making it environmentally favorable. Additionally, LSIM's efficient use of materials and reduced waste contribute to sustainability goals. Many manufacturers are now incorporating eco-friendly practices such as recycling scrap silicone and optimizing energy use during production.

Conclusion

Liquid silicone injection molding is transforming silicone part manufacturing by providing precision, efficiency, and versatility. Its ability to produce high-quality components for diverse industries—from medical devices to consumer electronics—makes it a preferred method. Understanding the materials, process, and factors affecting quality helps in optimizing production and innovation in this evolving field.
